XPro CUT 70CNC package - MEGAPACK

Code: NVWWDXCUT70CNCA NVWWDXCUT70CNSA NVWWDXCUT70CNSB Choose variant

Not rated Rating details

XPro CUT 70CNC package with SP80M 6m torch (Pack size 1 pcs)

XPro CUT 70CNC package - MULTIPACK (Pack size SET 2 pcs)

XPro CUT 70CNC package - MEGAPACK (Pack size SET 6 pcs)

€959,49 / pcs €1 875,66 / pack €5 534,10 / pack from €959,49 / pcs €1 180,17 incl. VAT €2 307,06 incl. VAT €6 806,94 incl. VAT from €1 180,17 incl. VAT – €937,83 / 1 pcs €922,35 / 1 pcs from €922,35 / 1 pcs

3-7 days 3-7 days 3-7 days Choose variant

Pack size
Chosen variant is not available. Reset selected parameters.

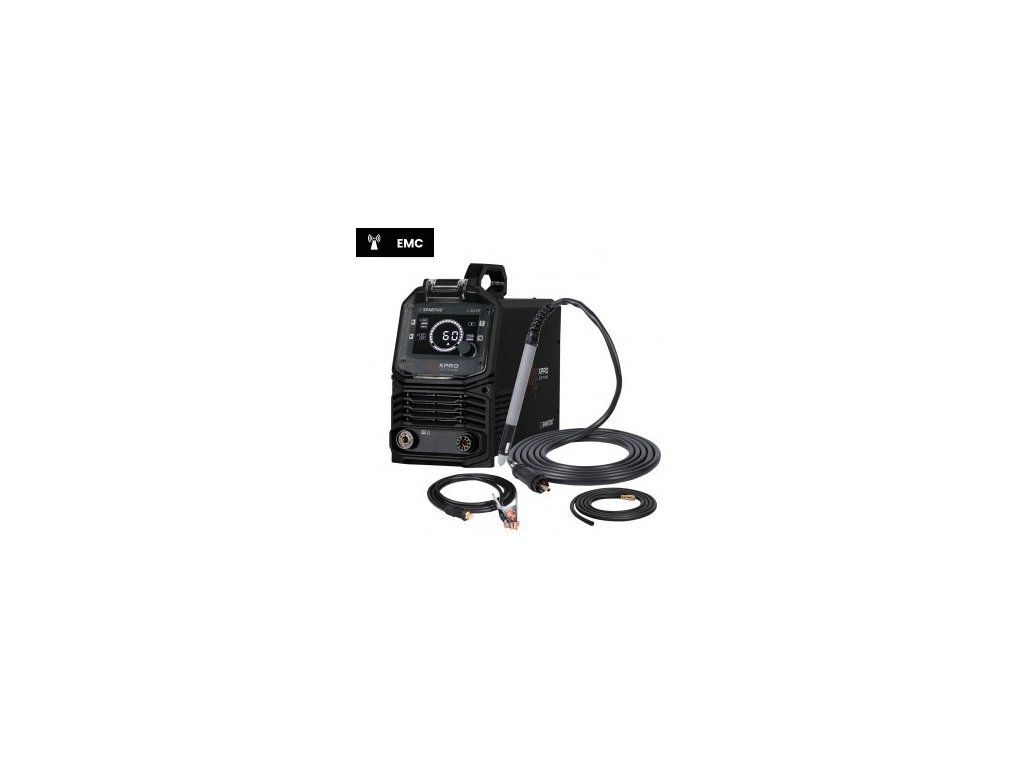

XPro CUT 70CNC. ~3× 400V ± 10% 50 / 60 Hz, 20 - 60A 60%, 16.2kg

Detailed information

Product detailed description

XPro CUT 70CNC – PRECISION CUTTING AND FULL CNC INTEGRATION

INDUSTRIAL XPro CUT 70CNC is a modern inverter plasma cutter for production plants and contractors. 400V power supply, cutting current up to 60A, max thickness 40mm, 60% duty cycle. Three operating modes: continuous, intermittent, gouging. CNC control socket for plasma table integration. Fan Stop cooling, non-contact arc ignition without HF, 2T/4T modes.

Input	~3× 400V ± 10% 50 / 60 Hz
Cutting current	20 - 60A
Max. cutting thickness	40mm
Duty cycle	60%
Output working voltage	88 - 104V
Recommended work pressure	3 - 6bar
Gas pre flow	yes
Gas post flow	yes
Pilot arc ignition	without HF
Current consumption	17 / 13A
Power factor (cosφ)	0.67
Efficiency η	87%
Insulation class	H
Protection class	IP21S
Weight	16.2kg
Dimensions	515 × 215 × 370mm
