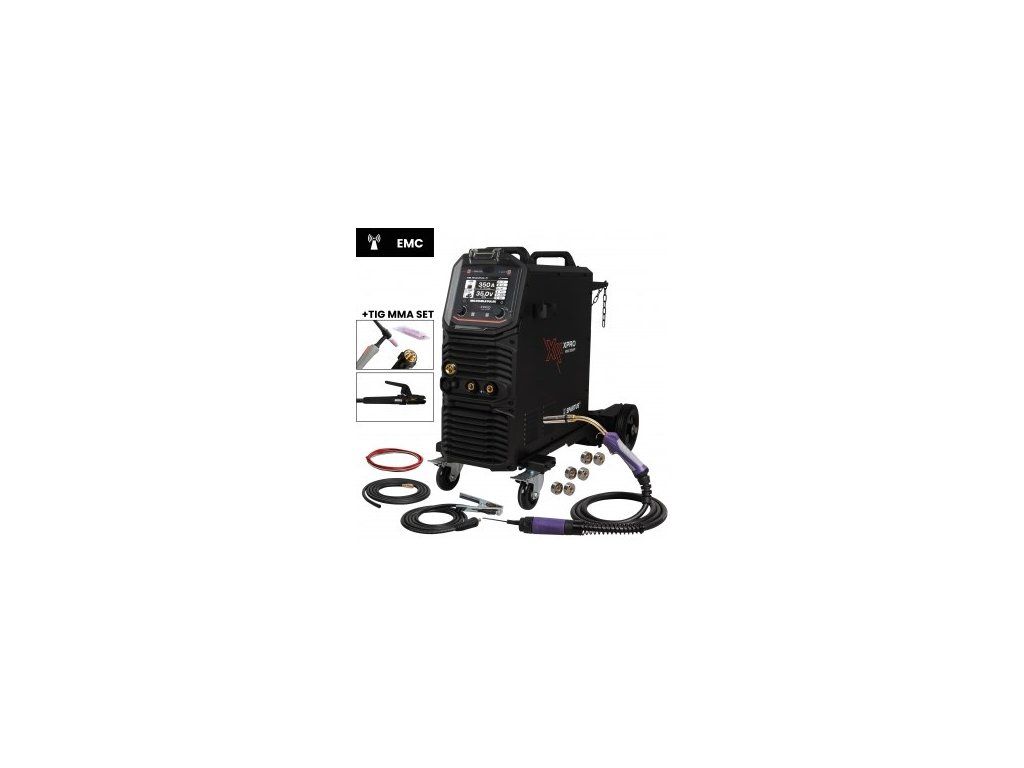

XPro MIG 350 DUAL PULSE package MIG TIG MMA - MEGAPACK
Code: NVWWDXMIG350DPA NVWWDXMIG350DSA NVWWDXMIG350DSB Choose variantProduct detailed description
INDUSTRIAL XPro MIG 350 Dual Pulse – INDUSTRIAL 350A DUAL PULSE ON TRANSPORT TROLLEY
INDUSTRIAL XPro MIG 350DP is a modern IGBT 400V three-phase MIG welder with Dual Pulse. 350A, 60% duty cycle, on transport trolley, 54.4kg.
MIG/MAG (manual/synergic/Pulse/Dual Pulse), TIG Lift Pulse, MMA Pulse. 4-roll feeder ≤15kg spool, Spool Gun.
S2T/S4T/SPOT, 20 memory channels. Synergic for steel/stainless/aluminium/CuSi/AlSi/AlMg. Fan Stop, IP23S.
| Input | ~3× 400V ± 10% 50 / 60 Hz |
|---|---|
| MIG welding current | 50 - 350A |
| MIG duty cycle | 60% |
| Output working voltage | 16.5 – 31.5V |
| Wire feeder | built-in, 4-roll gear |
| Welding wire spool | ≤ 15kg / ∅200/300mm |
| Wire diameter | 0.8 / 1.0 / 1.2mm |
| Synergy | yes |
| TIG Lift | yes |
| TIG welding current | 10 – 350A |
| MMA welding current | 10 – 300A |
| Arc Force | yes |
| Hot Start | yes |
| VRD | yes |
| Current consumption | MIG 23A / TIG 20A / MMA 21A |
| Power factor (cosφ) | 0.85 |
| Efficiency η | 83% |
| Insulation class | H |
| Protection class | IP23S |
| Weight | 54.4kg |
| Dimensions | 955 x 500 x 795mm |
